The application’s drawings, each in the specification’s own words.
Each drawing with the sentence the specification gives it.
FIG. 1 sets the scene; FIG. 4 follows one purchase; FIG. 26 splits a pool of fees; FIG. 28 runs the control cycle.
The drawings from the patent application, each with the application’s own description. Select a drawing to enlarge it.

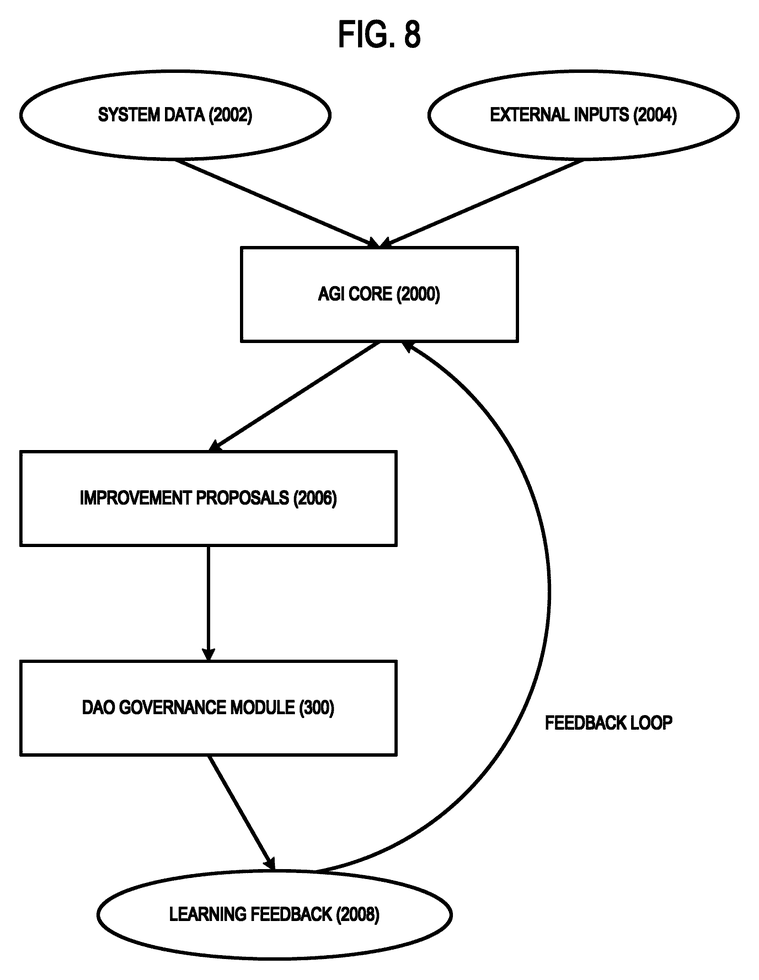

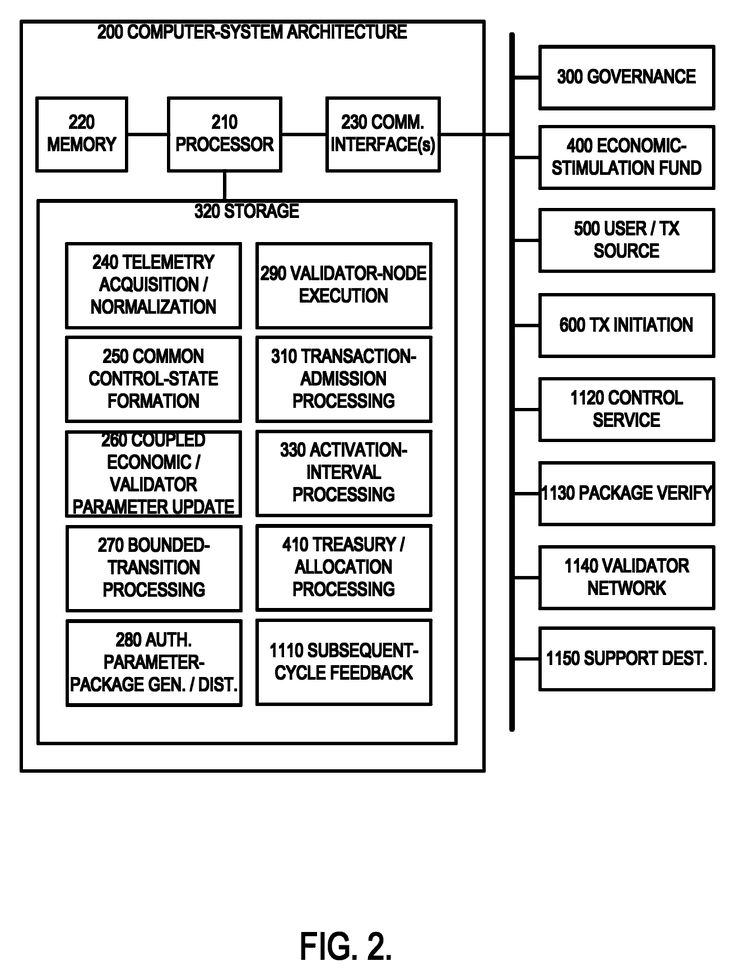

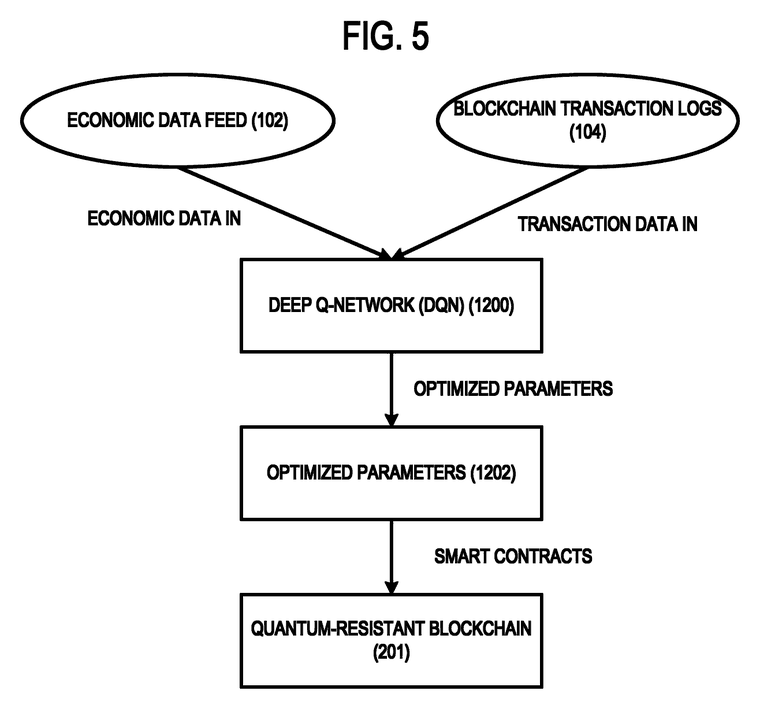

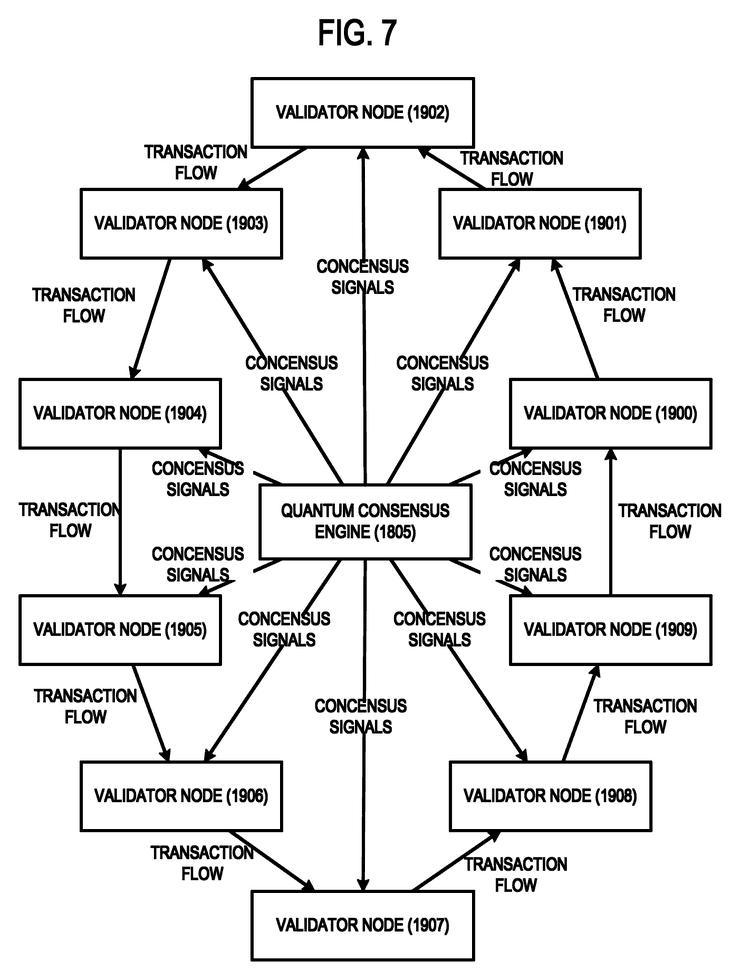

FIG. 1“Fig. 1 is a block diagram depicting an operating environment for a distributed digital-currency economic system in an illustrative use case scenario.”FIG. 2“Fig. 2 is a block diagram depicting a computer-system architecture that executes operations of the distributed digital-currency economic system.”FIG. 3“Fig. 3 is a block diagram depicting an architecture in which an AI-driven dynamic adjustment mechanism, a quantum-resistant blockchain, a DAO governance module, an economic-stimulation fund, and a user interface cooperate.”FIG. 4“Fig. 4 is a flowchart depicting an example transaction-flow method for processing a value transfer and allocating a resulting transaction fee.”FIG. 5“Fig. 5 is a flowchart depicting an example process for generating and deploying optimized operating parameters using a deep Q-network.”FIG. 6“Fig. 6 is a flowchart depicting an example governance method for evaluating a proposal using quadratic voting.”FIG. 7“Fig. 7 is a block diagram depicting an example consensus architecture coordinating multiple validator nodes through a quantum consensus engine.”FIG. 8“Fig. 8 is a flowchart depicting an example adaptive-control and feedback process in which an AGI core generates an improvement proposal.”FIG. 9“Fig. 9 is a block diagram depicting an example interoperability architecture connecting the economic system to external institutional and payment contexts.”FIG. 10“Fig. 10 is a flowchart depicting an example compliance method for determining a transaction’s compliance disposition.”FIG. 11“Fig. 11 is a block diagram depicting an example energy-positive embodiment directing a fee allocation to a carbon offset module.”FIG. 12“Fig. 12 is a flowchart depicting an example privacy-preserving transaction method routing a transaction along a public or private path.”FIG. 13“Fig. 13 is a flowchart depicting an example process for generating a dynamic transaction fee from transaction-level inputs.”FIG. 14“Fig. 14 is a block diagram depicting an example self-healing architecture maintaining ledger operation despite anomalous validator behavior.”FIG. 15“Fig. 15 is a block diagram depicting an example universal integration layer coupling the blockchain to multiple external networks.”FIG. 16“Fig. 16 is a flowchart depicting a further example adaptive-control and feedback process for generating a recurring sequence of improvement proposals.”FIG. 17“Fig. 17 is a flowchart depicting an example value-allocation process directing collected transaction fees toward global initiatives.”FIG. 19“Fig. 19 is a block diagram depicting an example high-volume interoperability architecture for processing a large transaction volume.”FIG. 20“Fig. 20 is a flowchart depicting a further example value-allocation process directing transaction fees toward global initiatives.”FIG. 21“Fig. 21 is a block diagram depicting an example consensus-authentication and audit architecture for verifying and recording blockchain operation.”FIG. 22“Fig. 22 is a flowchart depicting a further example process for calculating a dynamic transaction fee at a defined block interval.”FIG. 23“Fig. 23 is a flowchart depicting an example process for calculating and applying a tariff-offset value to a transaction.”FIG. 24“Fig. 24 is a flowchart depicting an example method for calculating an offset amount from tariff-related input values.”FIG. 25“Fig. 25 is a flowchart depicting an example method for processing an issuer registration proposal through governance voting.”FIG. 26“Fig. 26 is a block diagram depicting an example mechanism for allocating a collected transaction fee among multiple funding destinations.”FIG. 27“Fig. 27 is a flowchart depicting an example audit and compliance process for generating a transaction audit record.”FIG. 28“Fig. 28 is a flowchart depicting an example computer-implemented method for coordinating a recurring control cycle across the economic system.”The sources in fullevery quotation on this page, where it stands
“Fig. 1 is a block diagram depicting an operating environment for a distributed digital-currency economic system in an illustrative use case scenario.”
VP2.0 specification
“Fig. 28 is a flowchart depicting an example computer-implemented method for coordinating a recurring control cycle across the economic system.”
VP2.0 specification

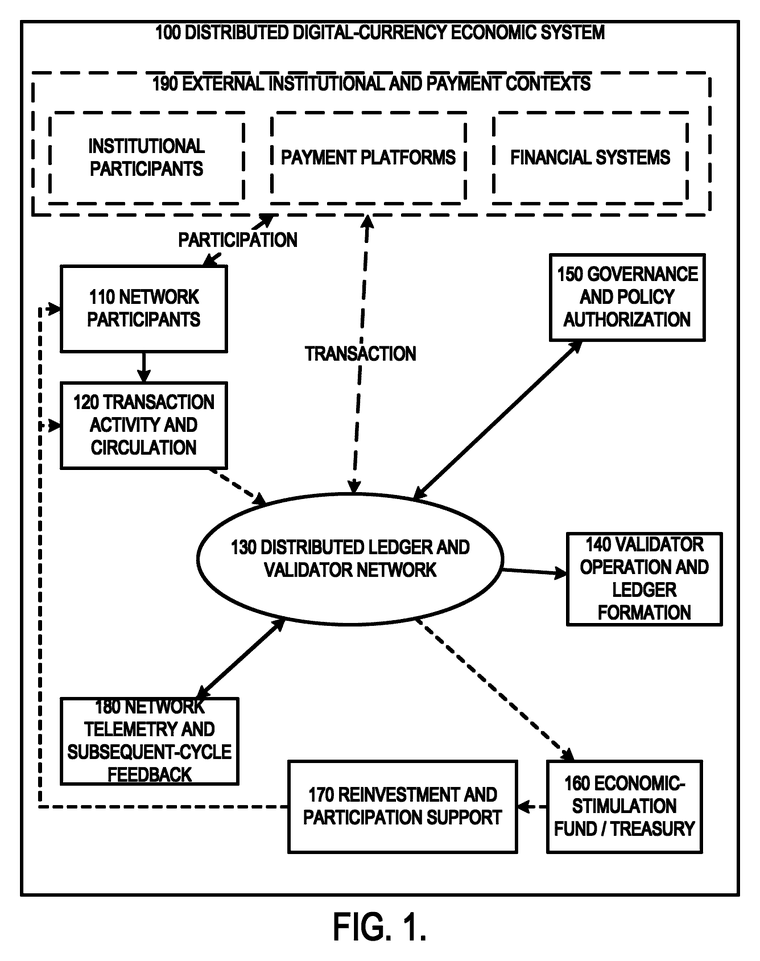

FIG. 1: “Fig. 1 is a block diagram depicting an operating environment for a distributed digital-currency economic system in an illustrative use case scenario.”

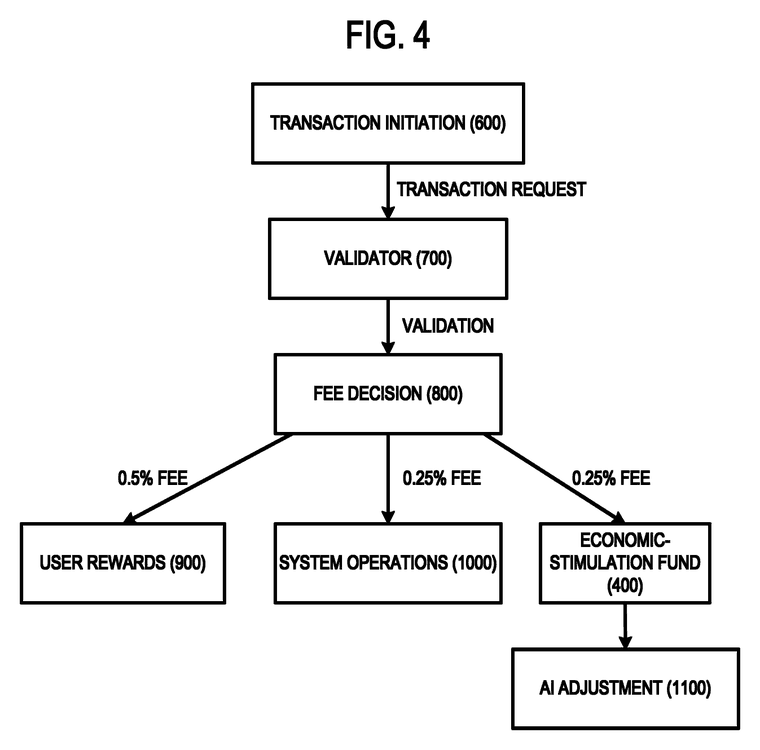

FIG. 4: “Fig. 4 is a flowchart depicting an example transaction-flow method for processing a value transfer and allocating a resulting transaction fee.”

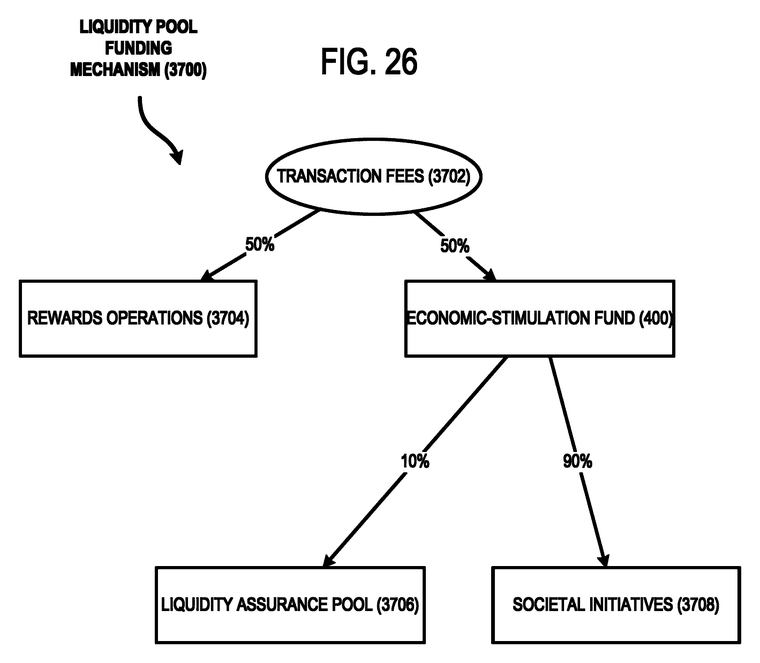

FIG. 26: “Fig. 26 is a block diagram depicting an example mechanism for allocating a collected transaction fee among multiple funding destinations.”

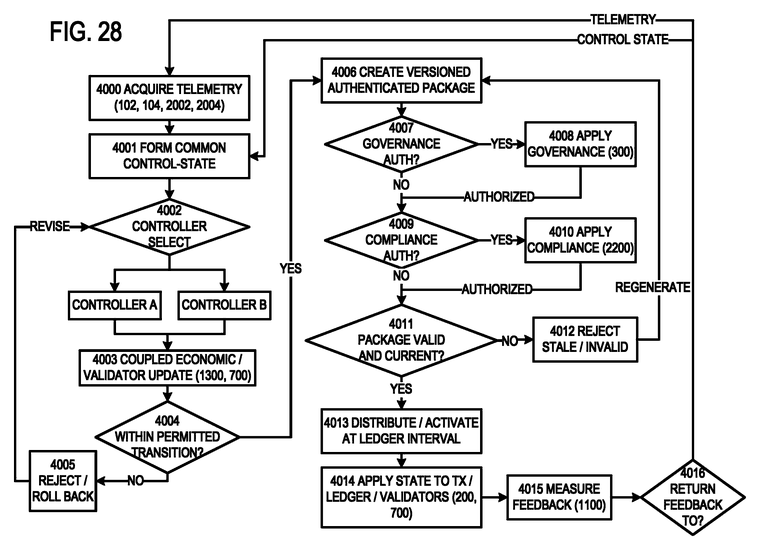

FIG. 28: “Fig. 28 is a flowchart depicting an example computer-implemented method for coordinating a recurring control cycle across the economic system.”

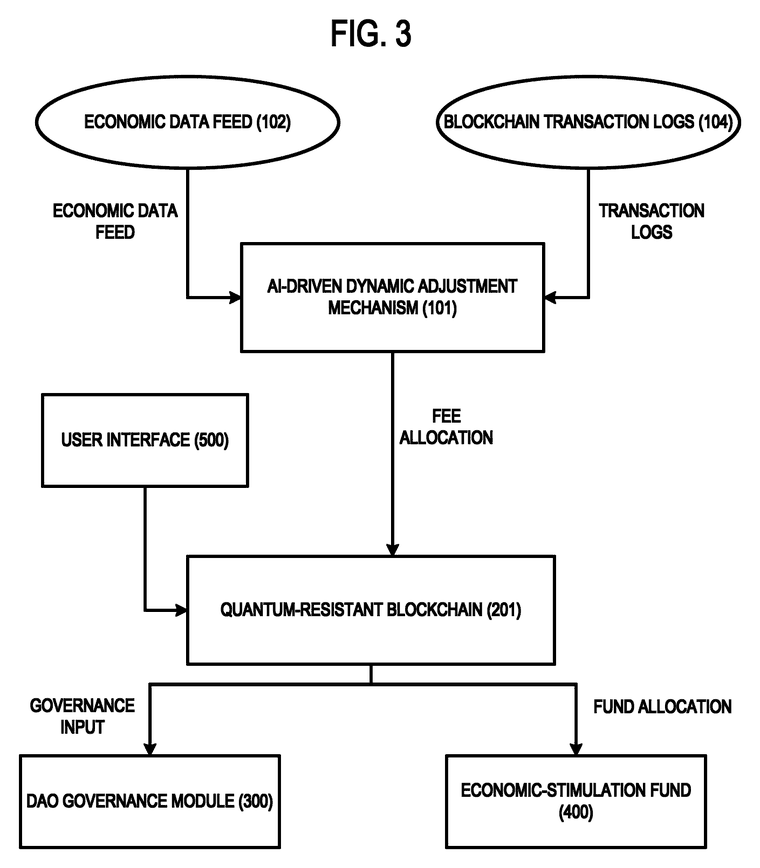

FIG. 3: “Fig. 3 is a block diagram depicting an architecture in which an AI-driven dynamic adjustment mechanism, a quantum-resistant blockchain, a DAO governance module, an economic-stimulation fund, and a user interface cooperate.”

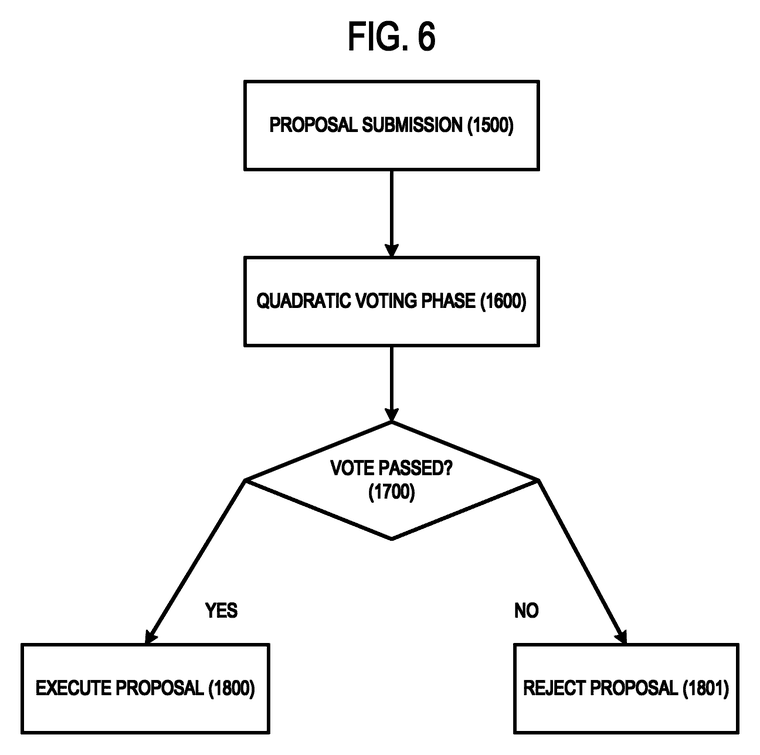

FIG. 6: “Fig. 6 is a flowchart depicting an example governance method for evaluating a proposal using quadratic voting.”
